Tekninen dokumentti
Tekniset tiedot
Merkki
FlukeProduct Type
Multimeter
Multimeter Type
Digital
Resistance Resolution
100mΩ
Model Number
117
Display Type
Digital
Functions Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
Maximum DC Voltage Measurement
600V dc
Maximum DC Current Measurement
10A dc
Maximum AC Current Measurement
10A ac
Maximum Resistance Measurement
40mΩ
Maximum AC Voltage Measurement
600V ac
True RMS
Yes
AC Voltage Accuracy
±1 % rdg + 3 Digits
DC Current Accuracy
±1 % rdg + 3 Digits
AC Current Accuracy
±1.5 % rdg + 3 Digits
DC Voltage Accuracy
±0.5 % rdg + 2 Digits
AC Voltage Resolution
0.1mV ac
AC Current Resolution
0.001A ac
DC Current Resolution
0.001A ac
DC Voltage Resolution
0.1 mV dc
Maximum Frequency
50kHz
Power Source
Battery
Minimum Operating Temperature
-10°C
Resistance Measurement Accuracy
±1.5 % rdg + 2 Digits
Maximum Operating Temperature
50°C
Battery Life
400h
Height
46mm
Length
167mm
Weight
550g
Standards/Approvals
CE, N10140, TUV, CSAus, UL, VDE
Width
84mm
Series
Fluke 117
Safety Category Level
CAT III
Battery Type
Alkaline
Safety Category Voltage
600V
Tuotetiedot

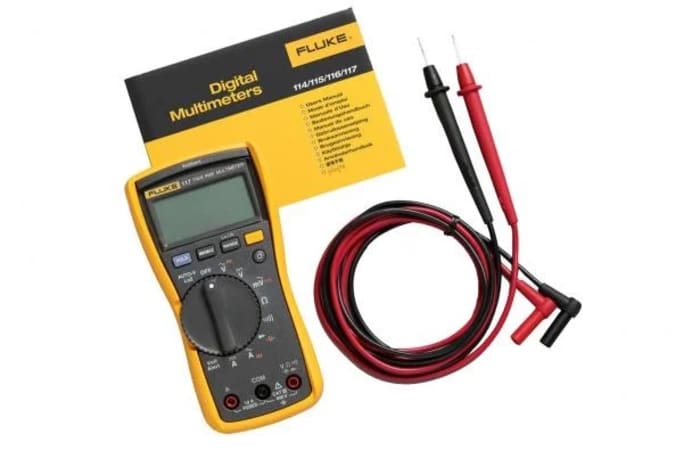

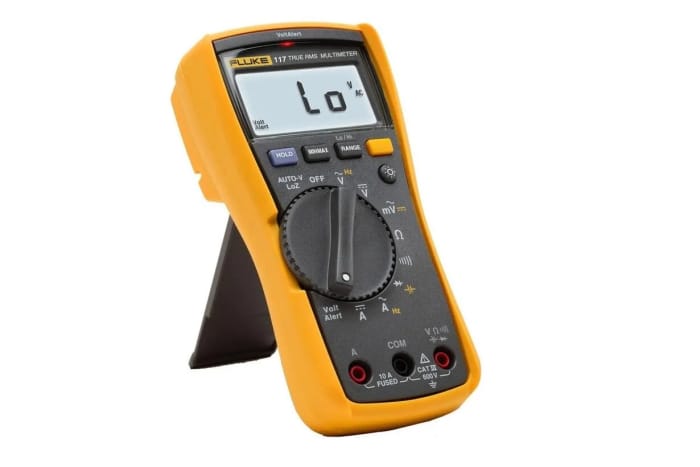

The Fluke 117 compact True RMS multimeter is popular for use in demanding settings such as commercial buildings, hospitals and schools. It includes integrated non-contact voltage detection to help get the job done faster.
Varastotiedot eivät ole tilapäisesti saatavilla.
€ 359,00
€ 359,00 kpl (ilman ALV)
€ 450,54
€ 450,54 kpl (Sis ALV:n)
Kalibrointitapa
No Calibration
1
€ 359,00
€ 359,00 kpl (ilman ALV)
€ 450,54
€ 450,54 kpl (Sis ALV:n)
Varastotiedot eivät ole tilapäisesti saatavilla.
Kalibrointitapa
No Calibration
1
