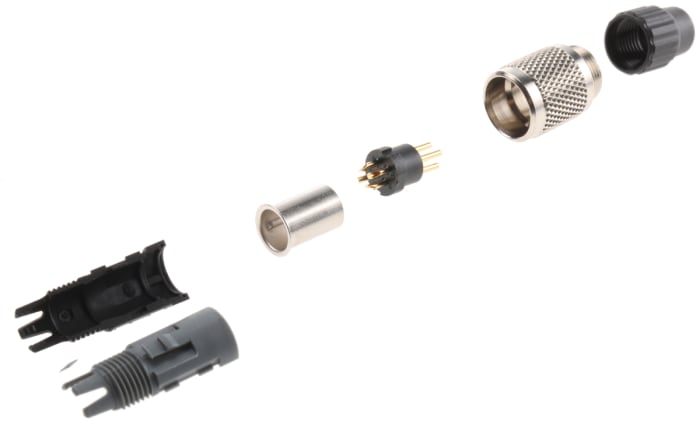

binder Circular Connector, 4 Contacts, Cable Mount, M9 Connector, Plug, Male, IP40, 711 Series
Tekninen dokumentti
Tekniset tiedot
Merkki
BinderNumber Of Contacts
4
Mounting Type
Cable Mount
Connector Size
M9
Plug/Socket
Plug
Contact Gender
Male
Termination Method
Solder
IP Rating
IP40
Current Rating
3.0A
Body Orientation
Straight
Series
711
Voltage Rating
125.0 V
Housing Material
Nylon
Contact Plating
Gold
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Contact Material
Brass
Alkuperämaa
Germany
Tuotetiedot
Subminiature Connector, Male Cable Connector, M9, IP40 - Series 711
Series 711, M9, male cable connector, subminiature connector with screw locking and IP40 ingress protection. These M9 male cable connectors have solder terminations and the cable housings have integrated strain relief.
Binder 711 - Metal
The Series 711 subminiature round plugs are connectors of a simple design with very small dimensions and are protected to IP40. High reliability permits frequent connection and disconnection. Cable strain relief is achieved by a crimp ferrule.
Varastotiedot eivät ole tilapäisesti saatavilla.
Tarkista myöhemmin uudelleen.
€ 9,90
kpl (ilman ALV)
€ 12,42
kpl (Sis ALV:n)
1
€ 9,90
kpl (ilman ALV)
€ 12,42
kpl (Sis ALV:n)
1
Osta irtotavarana
| Määrä | Yksikköhinta |
|---|---|
| 1 - 9 | € 9,90 |
| 10 - 14 | € 9,30 |
| 15 - 24 | € 8,90 |
| 25 - 49 | € 8,10 |
| 50+ | € 7,60 |
