Technical Document
Specifications
Brand
FinderProduct Type
Contactor
Coil Voltage
24V ac/dc
Number of Poles
2
Contact Voltage
440V
Contact Current
25A
Power Rating
2.2W
Series
22
Mount Type
DIN Rail
Normal State Configuration
1 NO/1 NC
Number of Auxiliary Contacts
2
Auxiliary Contact Configuration
1 NO/1 NC
Terminal Type
Screw
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
50°C
Depth
61mm
Length
18mm
Standards/Approvals
CE, EAC, RoHS
Width
61mm
Country of Origin
Italy
Product details

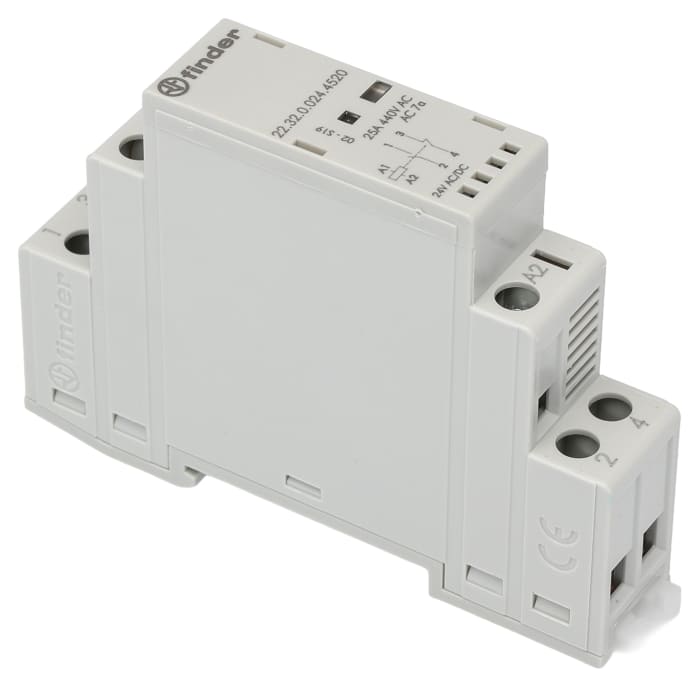

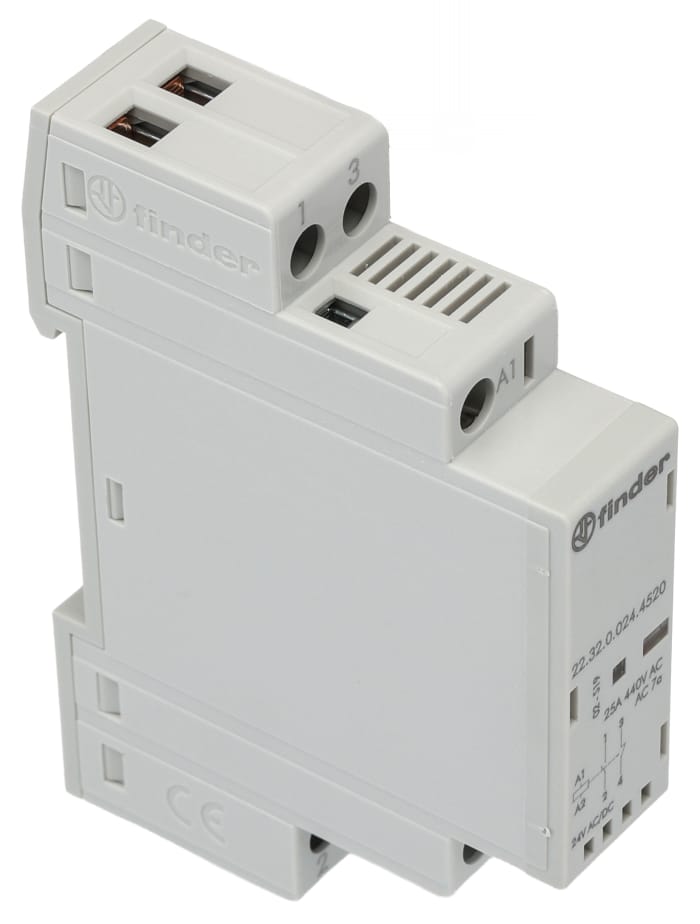

25 A modular contactors, available in 2/4 pole
Continuous duty for the coil and contactors
AC/DC silent coil (with varistor protection)
Mechanical and LED indicators as standard
Protective separation (reinforced insulation) between coil and contacts
35 mm rail (EN 60715) mount
Compliant with EN 6109 : 2009
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 31.57
€ 31.57 Each (Exc. Vat)
€ 39.62
€ 39.62 Each (inc. VAT)
