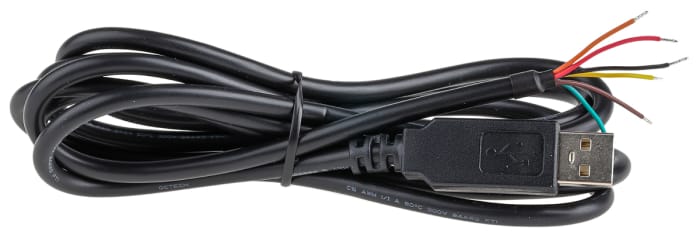

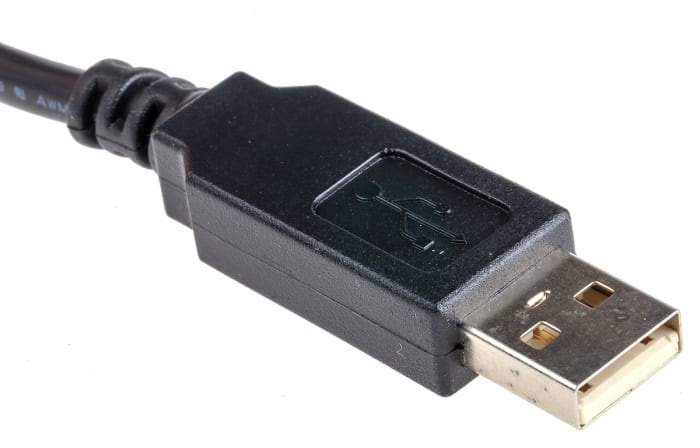

The FTDI chip USB to UART cable is a fast and simple way to connect devices with a TTL level serial interface to USB. It is available with TTL logic level of 5V. Each cable contains a small internal electronic circuit board, utilising the FT232R, encapsulated into the USB connector at the end of the cable. The cable has a gauge of 24AWG and diameter of 5mm. They are un-terminated, bare and tinned wires. The circuit is powered from the USB using 5V power pins and any VCC connection, always at 5VDC. These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux.
Stock information temporarily unavailable.
€ 29.20
€ 29.20 Each (Exc. Vat)
€ 36.65
€ 36.65 Each (inc. VAT)
1
€ 29.20
€ 29.20 Each (Exc. Vat)
€ 36.65
€ 36.65 Each (inc. VAT)
Stock information temporarily unavailable.
1
