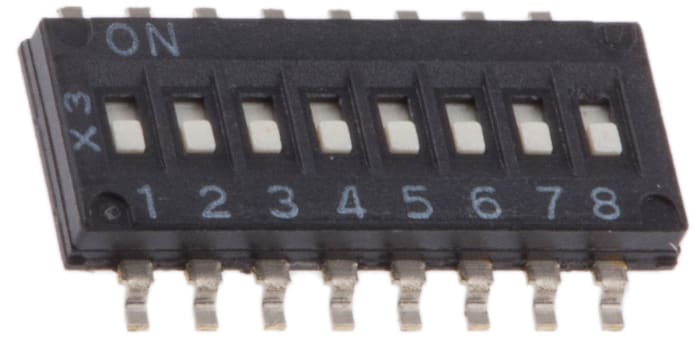

Omron Slide DIP Switch Surface Mount

RS Stock No.: 616-0855Brand: OmronManufacturers Part No.: A6H-8102
brand-logo
View all in DIP & SIP Switches

Technical Document

Specifications

Brand

Omron

Product Type

DIP Switch

Mount Type

Surface Mount

Actuator Type

Slide

Country of Origin

China

Product details

Ultra Low Profile Half Pitch Switches

A range of half pitch surface mount DIL switches. Being half pitch this reduces the mounting space by 63%.

Half pitch with ultra Low profile of 1.55mm
Available with or without tape seal
Surface mount
Contact resistance: 200mΩ
Insulation resistance: 100MΩ min @ 250Vdc
Mechanical life: 1000 operations
RoHS compliant

Dual-In-Line Switches
