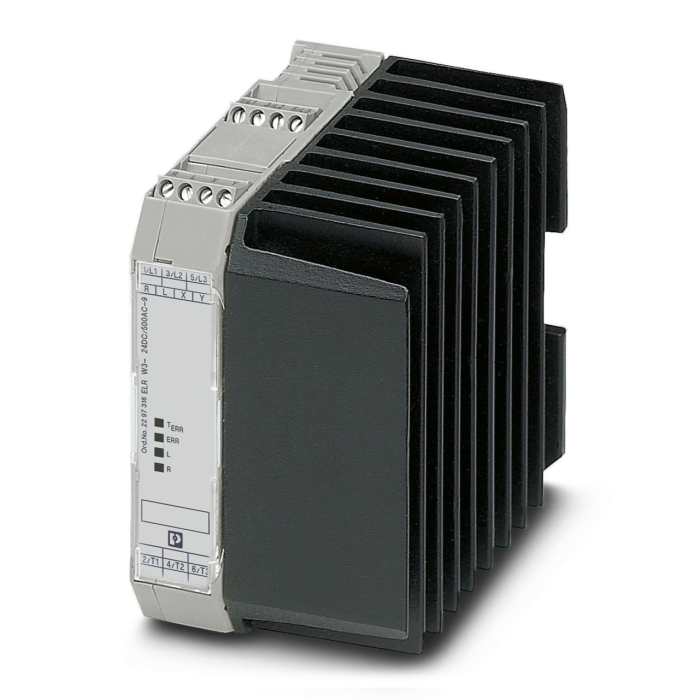

Phoenix Contact ELR W3/9-500 Series Solid State Relay, 150 mA Load, DIN Rail Mount, 19.2 V ac/dc Load, 30V ac/dc Control

RS Stock No.: 286-1134Brand: Phoenix ContactManufacturers Part No.: 2964186
brand-logo
View all in Solid State Relays

Technical Document

Specifications

Brand

Phoenix Contact

Maximum Load Current

150mA

Product Type

Solid State Relay

Mount Type

DIN Rail

Maximum Load Voltage

19.2V ac/dc

Minimum Load Voltage

30V ac/dc

Maximum Control Voltage

30V ac/dc

Minimum Control Voltage

19.2V ac/dc

Series

ELR W3/9-500

Terminal Type

Screw

IP Rating

IP20

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

EAC Approval ID TR_TS_D_00573_c, EN 50178, EN 61000-6-2, EN 61000-6-4

Width

62mm

Length

110mm

Height

84mm

Output Type

AC

Off State Leakage Current

7mA

Country of Origin

Germany
