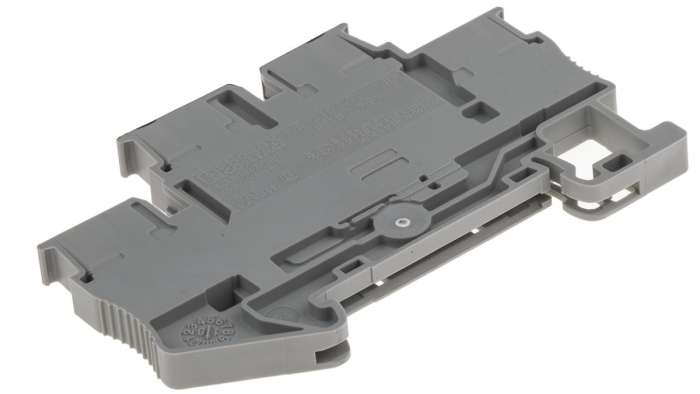

Phoenix Contact 3210567 PTTB 2.5 Series Grey, 0.14 → 4mm², Double-Level, Push In Termination, ATEX
Tekninen dokumentti
Tekniset tiedot
Merkki
Phoenix ContactColour
Grey
Number of Levels
Double
Voltage Rating
500 V
Series
PTTB 2.5
Termination Method
Push In
Cable CSA
0.14 → 4mm²
Current Rating
22A
Minimum Operating Temperature
-60 °C
Maximum Operating Temperature
+110°C
Hazardous Area Certification
ATEX
Standards Met
ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL
Model Number
PTTB 2.5
Alkuperämaa
Poland
Tuotetiedot
Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks
The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
€ 24,00
€ 2,40 1 kpl (10 kpl/pakkaus) (ilman ALV)
€ 30,12
€ 3,012 1 kpl (10 kpl/pakkaus) (Sis ALV:n)
10
€ 24,00
€ 2,40 1 kpl (10 kpl/pakkaus) (ilman ALV)
€ 30,12
€ 3,012 1 kpl (10 kpl/pakkaus) (Sis ALV:n)
10
Varastotiedot eivät ole tilapäisesti saatavilla.
Tarkista myöhemmin uudelleen.
