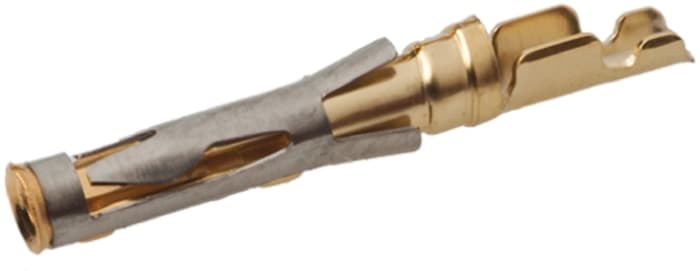

TE Connectivity Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 18 → 16 AWG
Technical Document
Specifications
Brand
TE ConnectivityGender
Female
Contact Size
16
Wire Size
18 → 16 AWG
Termination Method
Crimp
Series
Type III
For Use With
CPC Connectors, M Series Connectors
Current Rating
13A
Length
20.96mm
Contact Plating
Gold over Nickel
Contact Material
Copper
Mounting Type
Cable Mount
Product details
TE Connectivity Uninsulated Signal Contacts - Multimate Series II and III+
Multimate Series II and III+ uninsulated signal Contacts for use with rectangular M series and CPC connectors.
TE Connectivity Multimate Contacts
Multimate signal contacts feature a high normal force which provides a low resistance in critical applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. Stainless steel spring provides superior normal force and retention in the housing
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 18.75
€ 3.75 Each (In a Pack of 5) (Exc. Vat)
€ 23.53
€ 4.706 Each (In a Pack of 5) (inc. VAT)
Standard
5
€ 18.75
€ 3.75 Each (In a Pack of 5) (Exc. Vat)
€ 23.53
€ 4.706 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | € 3.75 | € 18.75 |
| 25 - 45 | € 3.40 | € 17.00 |
| 50 - 95 | € 3.00 | € 15.00 |
| 100 - 495 | € 2.70 | € 13.50 |
| 500+ | € 2.50 | € 12.50 |
