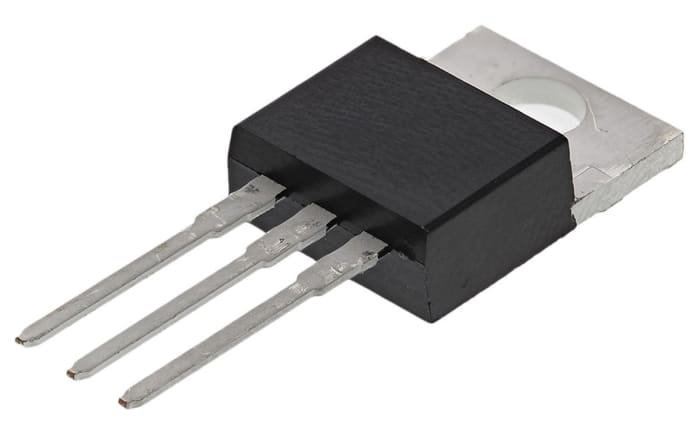

STMicroelectronics MDmesh M2 Type N-Channel MOSFET, 3.5 A, 650 V Enhancement, 3-Pin TO-220 STP5N60M2
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
3.5A
Maximum Drain Source Voltage Vds
650V
Package Type
TO-220
Series
MDmesh M2
Mount Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance Rds
1.4Ω
Channel Mode
Enhancement
Maximum Power Dissipation Pd
45W
Maximum Gate Source Voltage Vgs
25 V
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
8.5nC
Forward Voltage Vf
1.6V
Maximum Operating Temperature
150°C
Width
4.6 mm
Height
15.75mm
Length
10.4mm
Standards/Approvals
No
Automotive Standard
No
Product details
N-channel MDmesh™ M2 Series, STMicroelectronics
A range of high-voltage power MOSFETs from STMicroelecronics. With their low gate charge and excellent output capacitance characteristics, the MDmesh M2 series are perfect for use in resonant-type switching supplies (LLC converters).
MOSFET Transistors, STMicroelectronics
