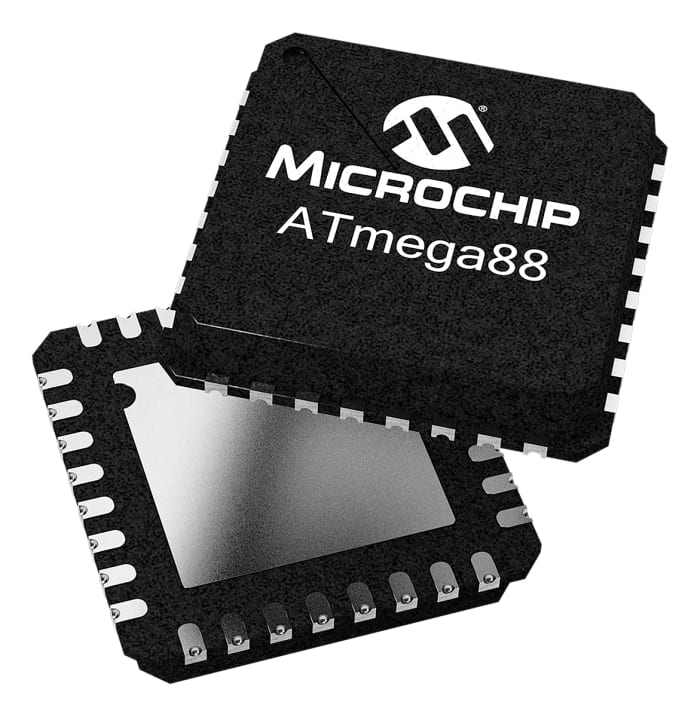

Microchip ATMEGA88PB-AU, 8bit AVR Microcontroller, ATmega, 20MHz, 8 kB Flash, 32-Pin TQFP
Technical Document
Specifications
Brand
MicrochipFamily Name
ATmega
Package Type
TQFP
Mounting Type
Surface Mount
Pin Count
32
Device Core
AVR
Data Bus Width
8bit
Program Memory Size
8 kB
Maximum Frequency
20MHz
RAM Size
1 kB
USB Channels
0
Number of PWM Units
1
Number of SPI Channels
1
Number of CAN Channels
0
Typical Operating Supply Voltage
2.7 → 5.5 V
Number of USART Channels
1
Number of UART Channels
0
Number of I2C Channels
1
Instruction Set Architecture
RISC
Number of ADC Units
1
Maximum Number of Ethernet Channels
0
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Length
7.1mm
ADCs
1 (8 x 10 bit)
Height
1.05mm
Number of LIN Channels
0
Width
7.1mm
Dimensions
7.1 x 7.1 x 1.05mm
Pulse Width Modulation
1 (6 Channel)
Program Memory Type
Flash
Number of Ethernet Channels
0
Number of PCI Channels
0
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 10.00
€ 2.00 Each (In a Pack of 5) (Exc. Vat)
€ 12.55
€ 2.51 Each (In a Pack of 5) (inc. VAT)
Standard
5
€ 10.00
€ 2.00 Each (In a Pack of 5) (Exc. Vat)
€ 12.55
€ 2.51 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 45 | € 2.00 | € 10.00 |
| 50+ | € 1.95 | € 9.75 |
