Tekninen Dokumentti
Tekniset tiedot
Merkki
Arcolectric (Bulgin) LtdProduct Type
Toggle Switch
Contact Configuration
DPDT
Switch Operation
On-Off-On
Switch Contact Current
20A
Mount Type
Panel
Terminal Type
Tab
IP Rating
IP67
Panel Cutout Size
12.7 mm
Actuator Length
17.5mm
Contact AC Voltage
277V ac
Actuator Material
Metal
Switch Configuration
On-Off-On
Standards/Approvals
UL, CSA
Series
3900
Mechanical Life
50000Operations
Alkuperämaa
China
Tuotetiedot

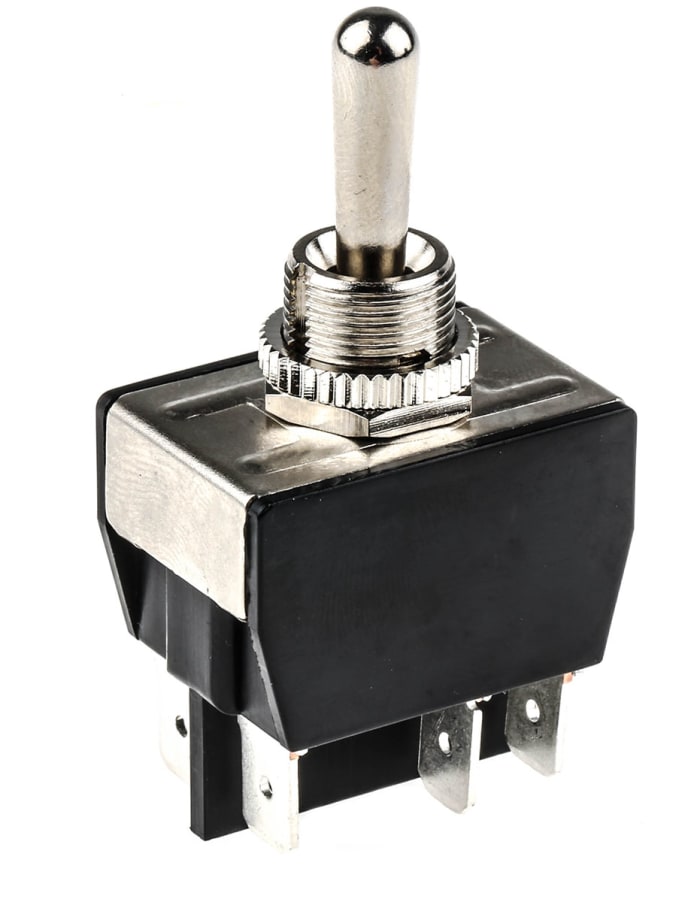

The 3900 Series of toggle switches offer a wide variety of switching options in single and double pole versions with SPST, SPDT, DPST & DPDT switching and momentary and three position actions.
Nickel plated brass levers, with nickel plated nut and bush, fit industry standard 12.7mm diameter mounting holes and provide secure, durable operation.
These switches find many applications where conventional lever operation is needed including; control panels, automation systems, test equipment, industrial equipment and even agricultural, marine and motoring accessories.
Ideoi. Luo. Tee yhteistyötä
LIITY ILMAISEKSI
Ei piilokuluja!
Varastotiedot eivät ole tilapäisesti saatavilla.
€ 18,40
€ 18,40 kpl (ilman ALV)
€ 23,09
€ 23,09 kpl (Sis ALV:n)
1
€ 18,40
€ 18,40 kpl (ilman ALV)
€ 23,09
€ 23,09 kpl (Sis ALV:n)
Varastotiedot eivät ole tilapäisesti saatavilla.
1
| Määrä | Yksikköhinta |
|---|---|
| 1 - 9 | € 18,40 |
| 10 - 24 | € 16,90 |
| 25 - 49 | € 16,20 |
| 50 - 99 | € 15,70 |
| 100+ | € 14,40 |
