Tekninen dokumentti
Tekniset tiedot
Merkki
RS ProFilter Type
Bag
Product Type
Bag Filter
Filter MERV Rating
13
Number of Pockets
4
Filter Grade
F7
Maximum Air Flow
69.46m³/h
Initial Pressure Drop
105Pa
Actual Width
287mm
Actual Height
592mm
Actual Depth
500mm
Final Pressure Drop
350Pa
Colour
Pink
Case Material
Galvanised Steel
Standards/Approvals
RoHS, ISO, BS EN
Media Material
Polypropylene
Nominal Height
609.6mm
Nominal Depth
508mm
Header Size
20mm
Nominal Width
304.8mm
Series
Ecoflow
Alkuperämaa
United Kingdom
Tuotetiedot

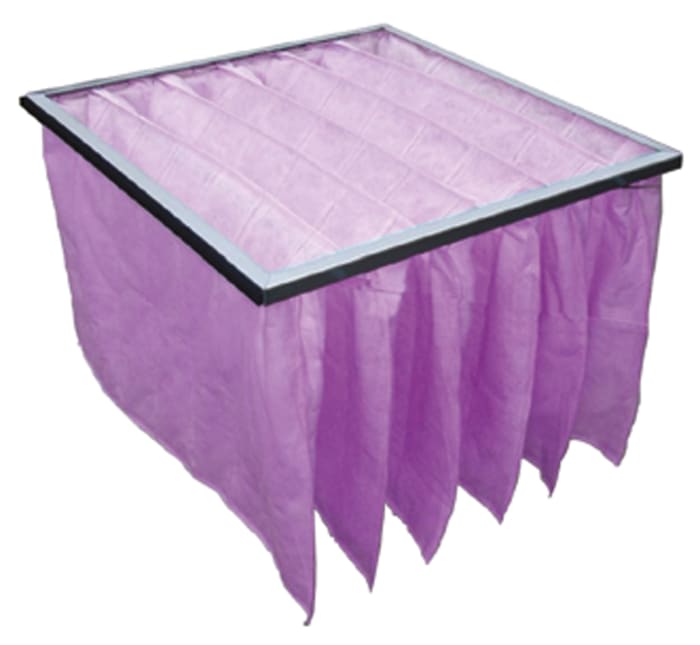

The RS Ecoflow range of bag filters are widely used in applications where low cost fine filtration is required.
Ecoflow bag filters are manufactured by mounting the 100% polypropylene synthetic electrostatically charged media into a galvanised steel header frame.
