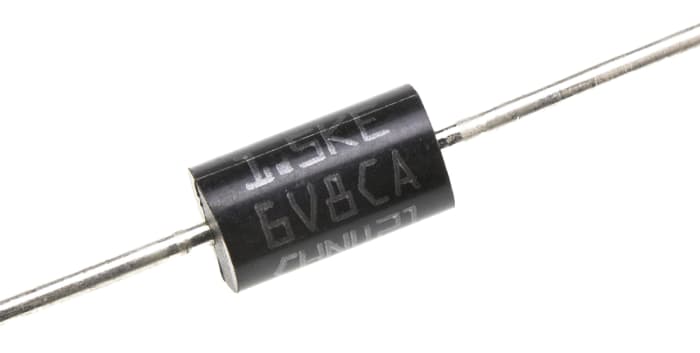

STMicroelectronics 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin DO-201

Merkki

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

6.45V

Mount Type

Through Hole

Package Type

DO-201

Maximum Reverse Stand-off Voltage Vwm

5.8V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1.5kW

Clamping Voltage VC

13.4V

Minimum Operating Temperature

-65°C

Test Current It

10mA

Maximum Peak Pulse Current Ippm

746A

ESD Protection

No

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Height

5.3mm

Length

9.5mm

Diameter

5.3mm

Standards/Approvals

No

Width

5.3mm

Series

1.5KE

Maximum Reverse Leakage Current

1mA

Automotive Standard

No
